AxisXHeight

Definition

Measures the distance (in pixels) between the x-axis and the top of the horizontal scroll bar near the bottom of the chart.

Property Value

A double representing the number of pixels separating the x-axis and the top of the horizontal scroll bar on the chart.

Syntax

ChartControl.AxisXHeight

Example

1
protected override void OnRender(ChartControl chartControl, ChartScale chartScale)
2
{
3
     // Print the number of pixels between the x-axis and the top of the horizontal scrollbar
4
     double height = chartControl.AxisXHeight;
5
     Print(height);
6
}

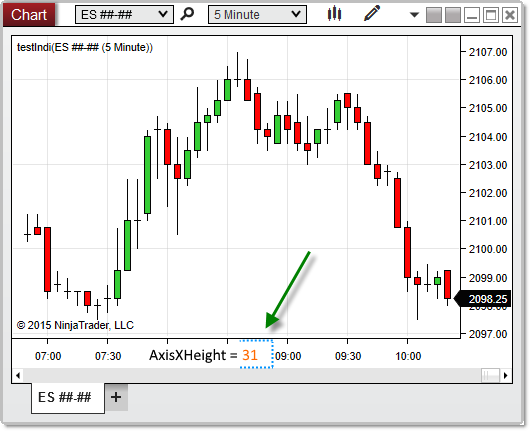

Based on the image below, AxisXHeight reveals that the space between the x-axis and the top of the horizontal scrollbar is 31 pixels on this chart.
