ReferencesCommonChartsChartPanel

Y (Coordinate)

View as Markdown

Definition

Indicates the y-coordinate on the chart canvas at which the chart panel begins.

Property Value

A int representing the y-coordinate at which the panel begins.

Syntax

ChartPanel.Y

Example

protected override void OnRender(ChartControl chartControl, ChartScale chartScale)
{
  base.OnRender(chartControl, chartScale);

  // Print the coordinates of the top-left corner of the panel
  Print(String.Format("The panel begins at coordinates {0},{1}",ChartPanel.X ,ChartPanel.Y));
}

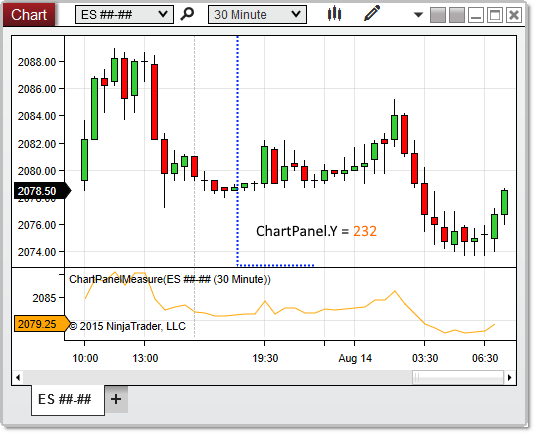

Based on the image below, Y reveals that the chart panel begins at y-coordinate 232.

chartpanel_y
