GetYByValueWpf()

Definition

Returns a WPF coordinate on the chart determined by a series value represented on the chart scale.

Method Return Value

An double value representing a WPF coordinate on the chart scale.

Syntax

\<chartscale\>.GetYByValueWpf(double val)

Method Parameters

Examples

1
protected override void OnRender(ChartControl chartControl, ChartScale chartScale)
2
{
3
   // gets the wpf coordinate of the price value passed to the method
4
   int     valueByYWpf = chartScale.GetYByValueWpf(Bars.GetClose(Bars.Count - 1));
5
6
   Print("valueByYWpf: " + valueByYWpf); // 207
7
}

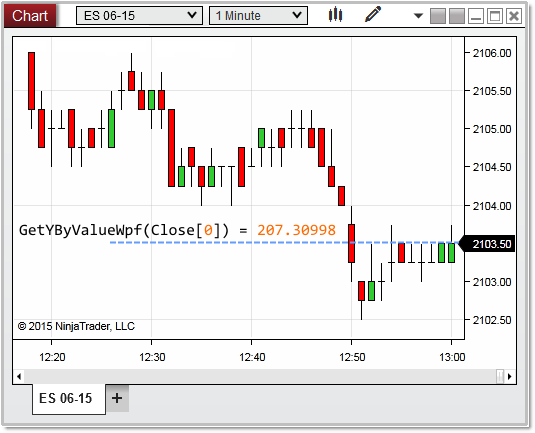

In the image below, we pass the last bar close as the value (example logic avoids using a bars ago index, see also OnRender() note #5), which in return tells us the last price displayed on the chart is at a WPF location of 207.30998 pixels.
