BarWidth

Definition

Measures the value of the bar width set for the primary Bars object on the chart.

This property value is not stated in pixels. To obtain the pixel-width of bars on the chart, use GetBarPaintWidth() instead.

Property Value

A double representing the value of the bar width.

Syntax

\<chartcontrol\>.BarWidth

Examples

1 protected override void OnRender(ChartControl chartControl, ChartScale chartScale)
2 {
3     double barWidth = chartControl.BarWidth;
4
5     // Prints the width of bars on the chart
6     Print(barWidth);
7 }

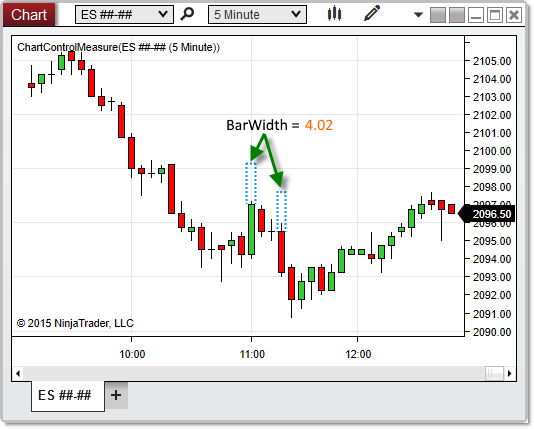

Based on the image below, BarWidth reveals that the bars on the chart are 4.02 pixels wide.

ChartControl_BarWidth
