X (Coordinate)

Definition

Indicates the x-coordinate on the chart canvas at which the chart panel begins.

Property Value

A int representing the x-coordinate at which the panel begins. This property will only contain a value greater than zero if the y-axis displays to the left of the paintable chart canvas area in the panel (if an object in the panel is using the “Left” scale justification).

Syntax

ChartPanel.X

Example

1
protected override void OnRender(ChartControl chartControl, ChartScale chartScale)
2
{
3
  base.OnRender(chartControl, chartScale);
4

5
  // Print the coordinates of the top-left corner of the panel
6
  Print(String.Format("The panel begins at coordinates {0},{1}",ChartPanel.X ,ChartPanel.Y));
7
}

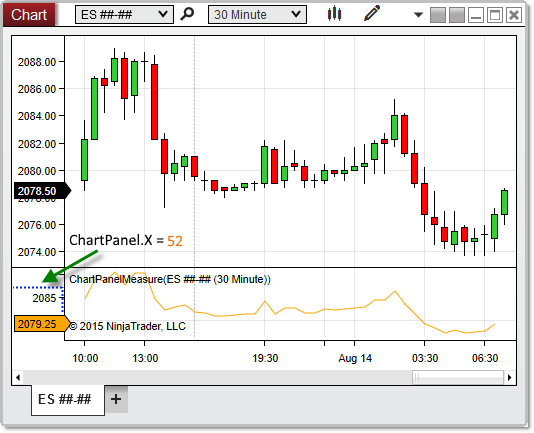

Based on the image below, X reveals that the chart panel begins at x-coordinate 52.
