BarMarginLeft

Definition

A hard-coded minimum bar margin value, set to 8 pixels, which can be used as a base value when creating custom Chart Styles.

Property Value

A value representing the minimum margin applied to the left edge of bars. This value is hard-coded to 8 pixels, and it can be used as a base value when setting the bar margin in custom Chart Styles.

Syntax

ChartControl.BarMarginLeft

Example

1
protected override void OnRender(ChartControl chartControl, ChartScale chartScale)
2
{
3
     // Print the number of pixels maintained as a margin to the left of bars
4
     double barMargin = chartControl.BarMarginLeft;
5
     Print(barMargin);
6
}

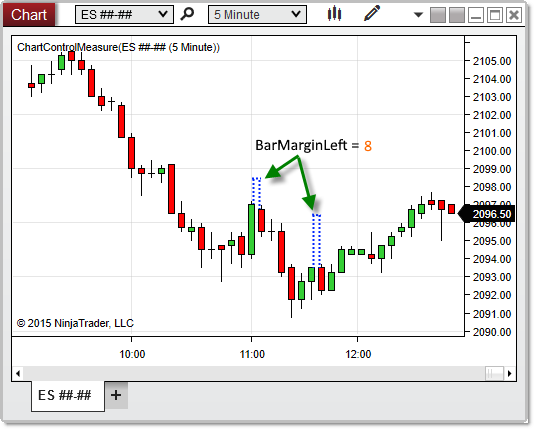

Based on the image below, BarMarginLeft reveals that the minimum margin maintained to the left of each bar is 8 pixels on this chart.
