ReferencesCommonChartsChartControl

BarSpacingType

View as Markdown

Definition

Indicates the type of bar spacing used for the primary Bars object on the chart.

Property Value

An enum representing one of the values below:

PropertyDescription
EquidistantSingleIndicates Equidistant Bar Spacing is used, and only one Bars object exists on the chart
EquidistantMultiIndicates Equidistant Bar Spacing is used, and more than one Bars objects exist on the chart
TimeBasedIndicates Time-Based bar spacing is used

Syntax

chartcontrol.BarSpacingType

Example

1protected override void OnRender(ChartControl chartControl, ChartScale chartScale)
2{
3   // Print the type of bar spacing used on the chart
4   Print(chartControl.BarSpacingType);
5}

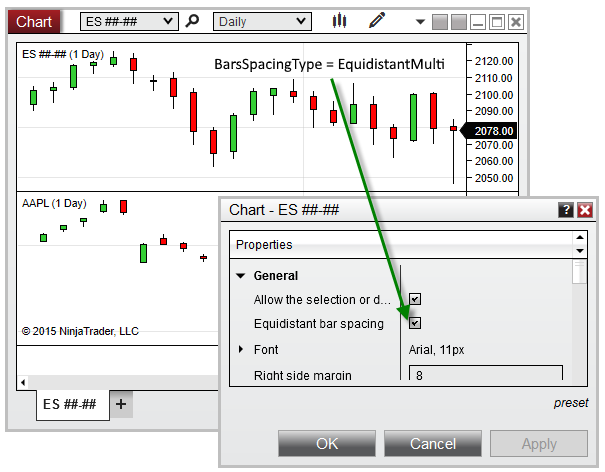

Based on the image below, BarSpacingType confirms that there are multiple Bars objects configured on the chart, and that the chart is set to Equidistant Bar Spacing:

ChartControl_BarSpacingType
