IsYAxisDisplayedLeft

Definition

Indicates the y-axis is visible on the left side of the chart panel.

Property Value

A bool indicating the y-axis is visible to the left

Syntax

ChartPanel.IsYAxisDisplayedLeft

Examples

1
protected override void OnRender(ChartControl chartControl, ChartScale chartScale)
2
{
3
   base.OnRender(chartControl, chartScale);
4
5
   // Print a message if the y-axis is visible on the left
6
   if (ChartPanel.IsYAxisDisplayedLeft)
7
       Print("The y-axis is visible on the left");
8
}

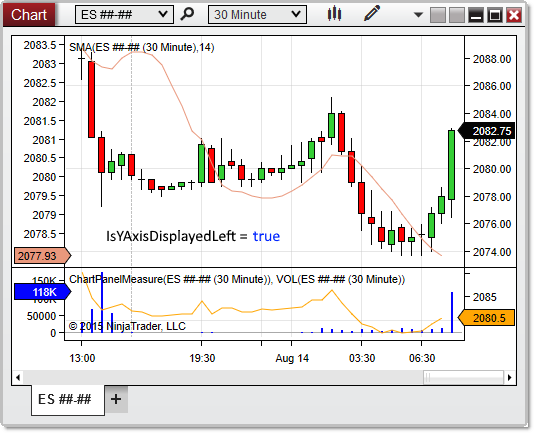

Based on the image below, IsYAxisDisplayedLeft confirms that the y-axis displays to the left. In this image, the property would be set to true when applied to either chart panel.
