IsScrollArrowVisible

Definition

Indicates the time-axis scroll arrow is visible in the top-right corner of the chart.

Property Value

A bool value. When True, indicates that the scroll arrow is visible on the chart; otherwise False.

Syntax

\<chartcontrol\>.IsScrollArrowVisible

Examples

1
protected override void OnRender(ChartControl chartControl, ChartScale chartScale)
2
{
3
   // Print a message if the scroll arrow is visible on the chart
4
   if(chartControl.IsScrollArrowVisible);
5
       Print("The chart is currently not set to auto-scroll. Click the scroll arrow to return to auto-scrolling");
6
}

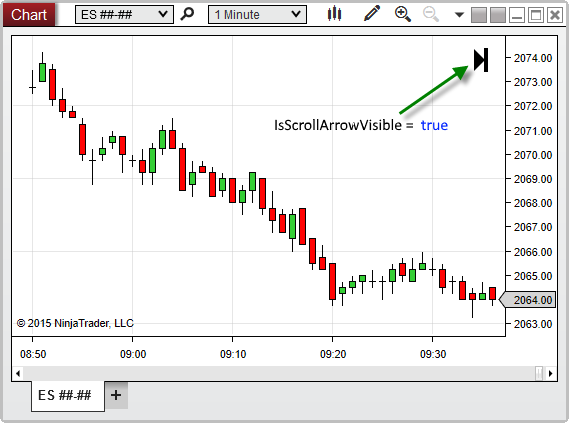

Based on the image below, IsScrollArrowVisible confirms that the scroll arrow is currently visible on the chart.
